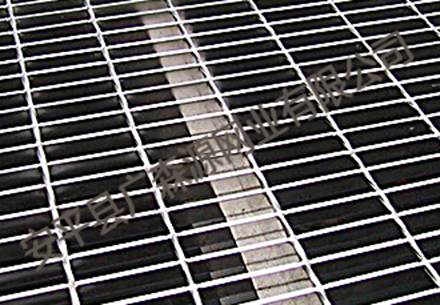

Stainless steel grating

NAME

Stainless steel grating

SPECIFIFICATIONS

950*1200*10*70

CHARACTER

Stainless steel grating has advantages of high degree of automation, high separation efficiency, low power consumption, no noise, corrosion resistance, in the unattended condition can ensure continuous and stable work, and set up a mechanical overload protection device. When the equipment failure, shear pin will cut, then can prevent the equipment work overload and damaged equipment components.

USES

Stainless steel grating is a professional water treatment equipment which can automatically intercept and remove the variety of shapes debris in the fluid. It can be widely used in city sewage treatment and supply water industry, power plant water inlet, besides, it can also be used at wastewater treatment process in the first level screening equipment such as textile, food processing, paper making, leather industry, etc. Stainless steel grating is the one of Chinese most advanced solid-liquid screening equipment, to fill the domestic bla.

No.

Item

Description

1

Bearing Bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc

2

Bearing Bar Pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.

3

Twisted Cross Bar Pitch

38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc

4

Material Grade

ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc

5

Surface Treatment

Black, self colour, hot dip galvanized, painted, spray coating

6

Grating Style

Plain / Smooth, Serrated /teeth, I bar, serrated I bar

7

Standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1992, Japan: JIS
